Lithium Battery Communications

by Ben N on August 26, 2019

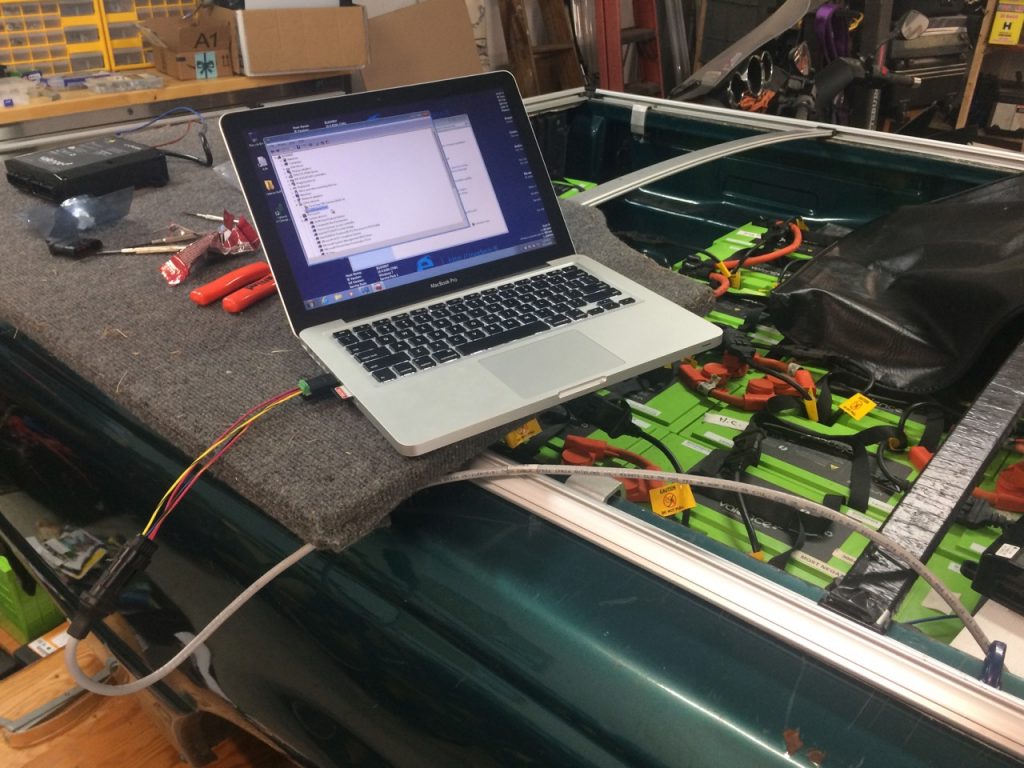

I just got my laptop to communicate with the Valence lithium batteries in the Ford Ranger EV pickup truck!

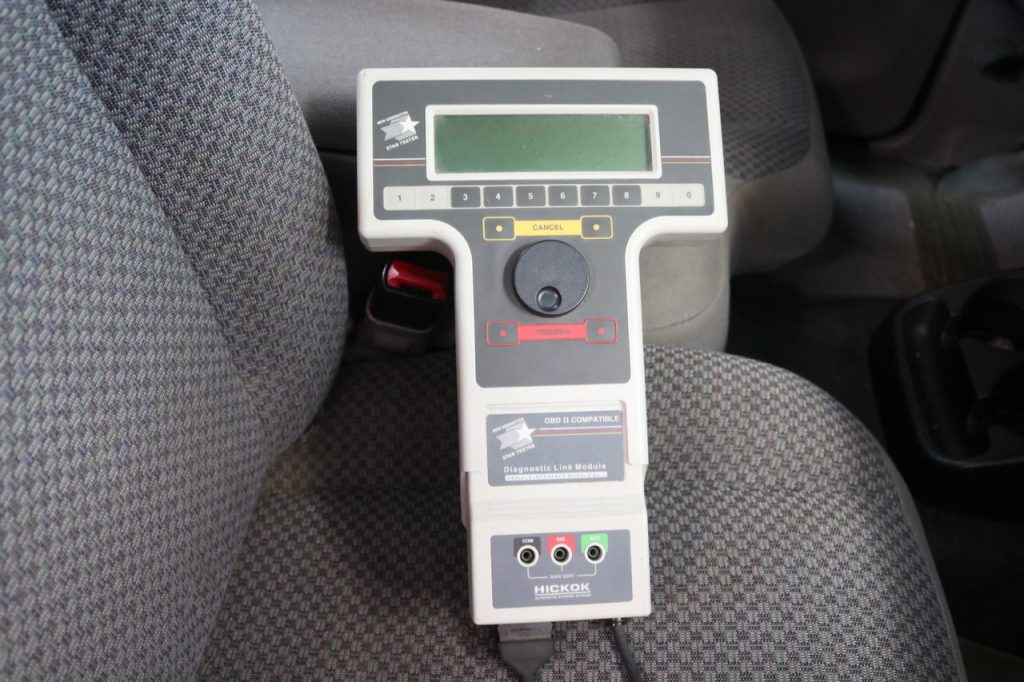

The truck’s instrumentation is pretty basic – just a “Miles to Go” and “Percent Charged” meter, which were designed to work with lead-acid batteries. I wanted to be able to communicate directly with the lithium batteries to make sure they were balanced and that I was getting the full state-of-charge and other information from them.

Data Connections of the Valence lithium batteries

These Valence U27-12XP batteries (specs here) contain an internal BMS and communications system. Each battery has a male and female 5-pin Tyco Amp connector on it. Those cables are daisy-chained together and connected to a BMS interface device. Normally, that device would communicate to the batteries and then connect to the vehicle to do things such as sending a CAN signal to the battery charger to turn it off when the batteries are charged.

Home-made RS-485 to USB adapter

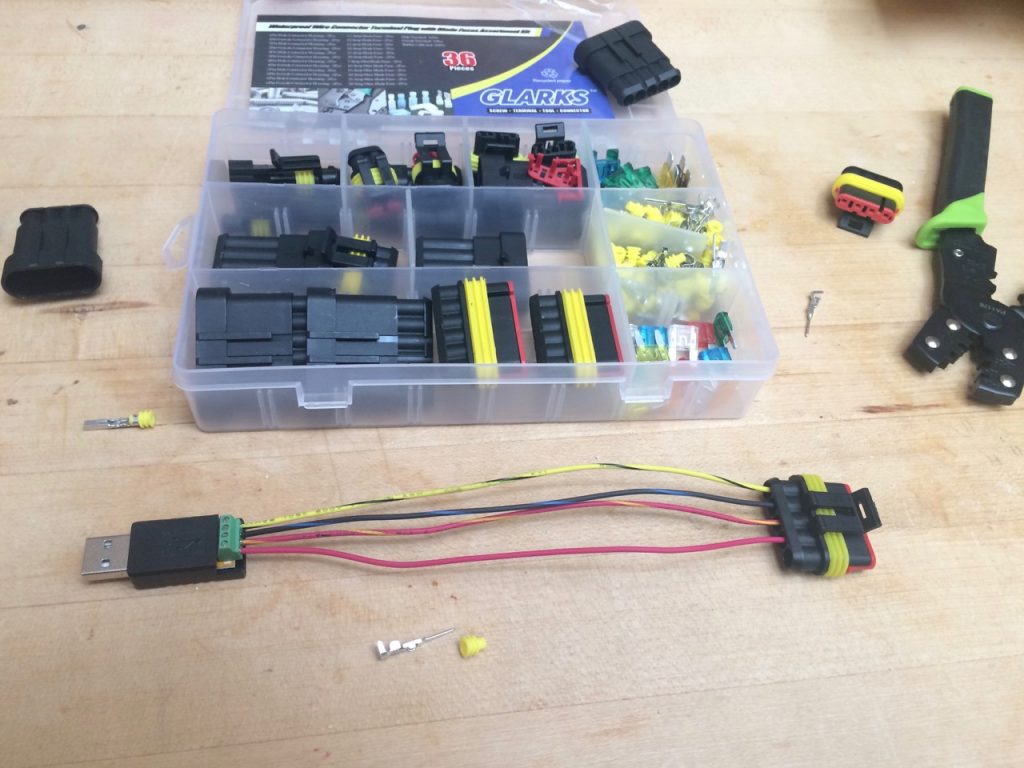

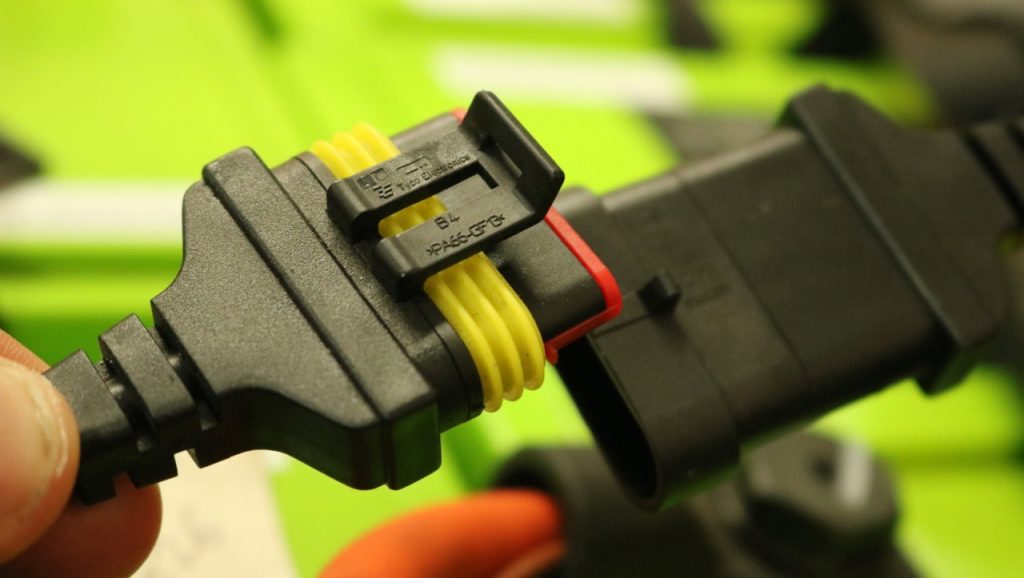

By instead plugging in my laptop, I should be able to read data from the batteries. To do so, I got a generic RS-485 to USB adapter (https://amzn.to/2zn3S6s)
and ordered a kit of Amp SuperSeal connectors.
(https://amzn.to/2Hr3zM8)

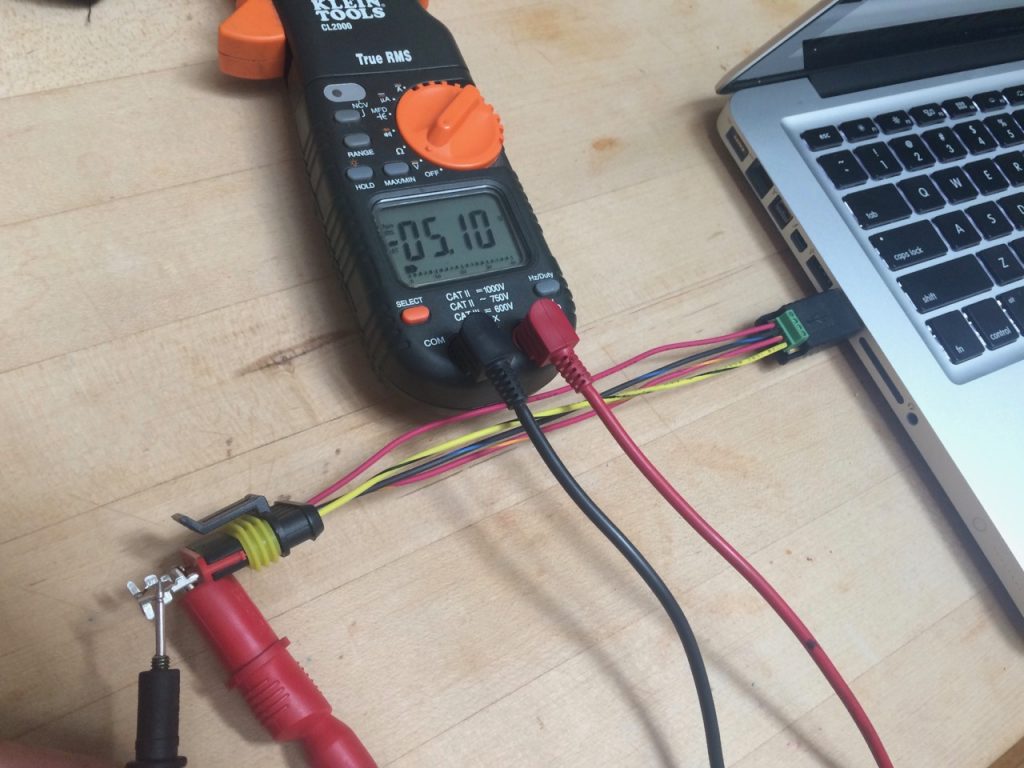

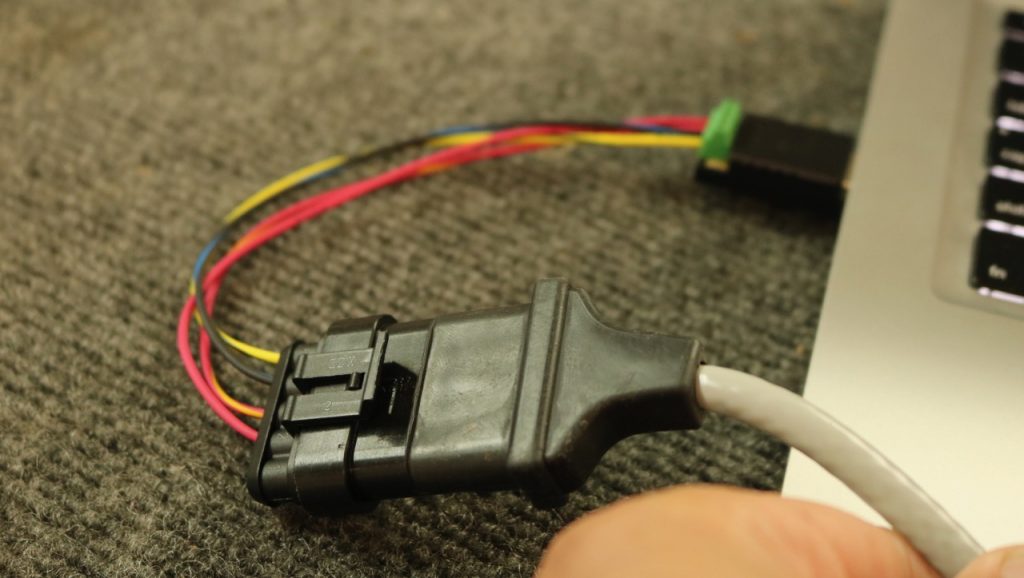

I simply cut four short sections of 18 gauge wire and connected them between the plug and the UBS adapter. The 5V power is on the outside two pins (pin 2 & 5 on the Amp connector) and the communication signal is on the inside two pins. Pin 1 on the Amp connector is for shield and I left it unused.

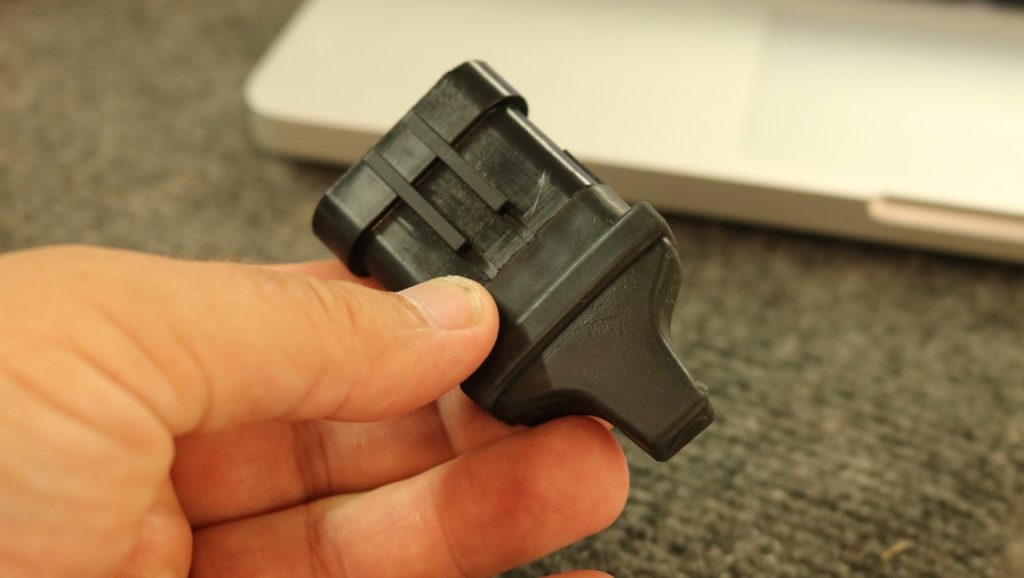

The battery communication string had a terminator on the far end (from the original Smith truck battery pack.) I pulled it off and measured it. It read as a 120Ω resistor. However, I found out later that it didn’t seem to make a difference whether or not the resistor terminated the string. Here’s an article on why that it.

The software for the Valence batteries is Windows only. I have a Mac laptop, so I had to do a little work to get Windows running on it. I used Virtual Box to run a trial version of Windows 10. There are other ways to run Windows on a Mac as well, but this was free and pretty straight-forward to use. Of course, if you have a PC laptop, you can just skip this.

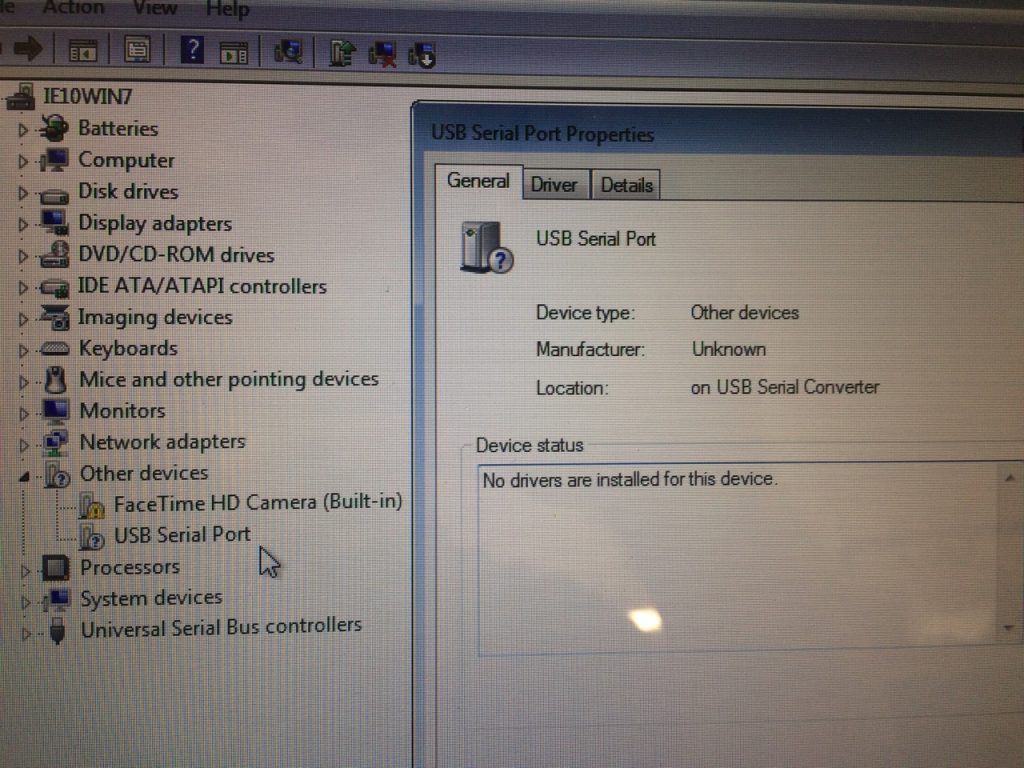

The main challenge was just to make sure the correct drivers were installed and permissions were granted. I had an issue at first with the USB adapter. A friend gave it to me (thanks, Eric!) but I didn’t have any documentation and Windows 7 didn’t recognize it. It ran fine on Windows 10 and identified using an FTDI chip driver. To prevent errors when the Valence software is running, permissions must be manually changed on the root folder of the software to full Administrator permissions.

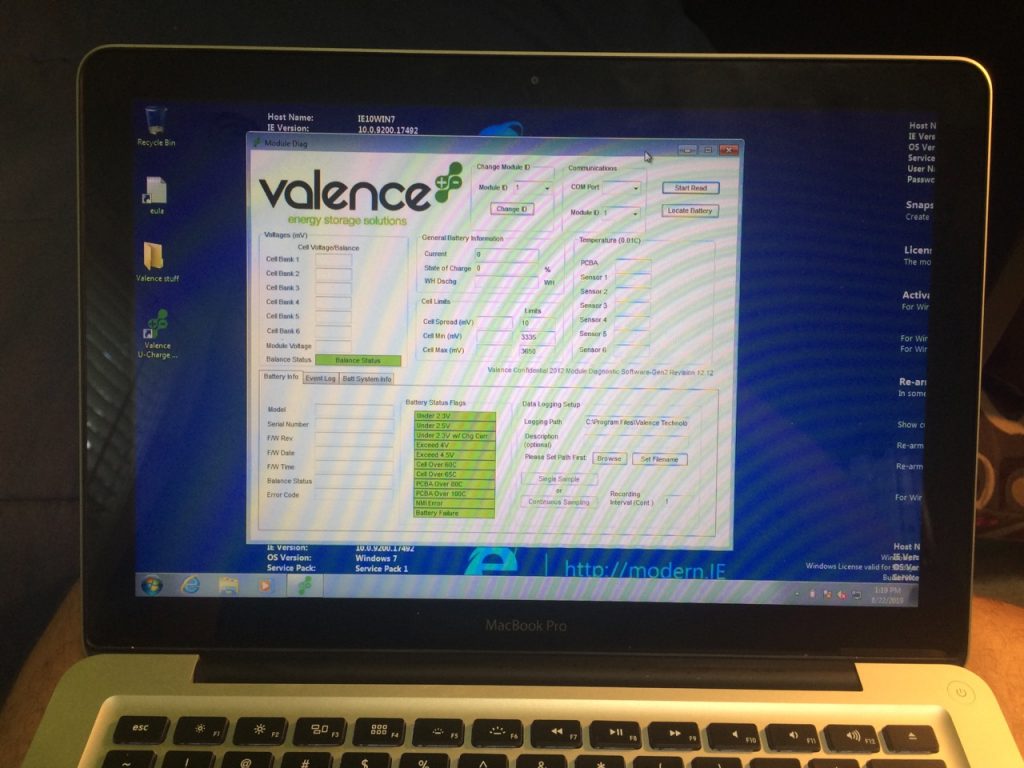

At this point, I was finally able to use the software! My adapter was plugged in to the computer with RS-485 cable going to the most positive end of the battery pack, with the rest of the batteries daisy-chained together. In the Valence software, one last quirk was that there were NO COM PORTS listed in the drop-down box for which communications port to connect to. In my settings and drivers, it looked like the USB adapter associated with COM3. I had to manually type “COM3” into the drop-down and hit enter. NOW it connected! After closing and reopening the software, COM3 would stay as the selected port.

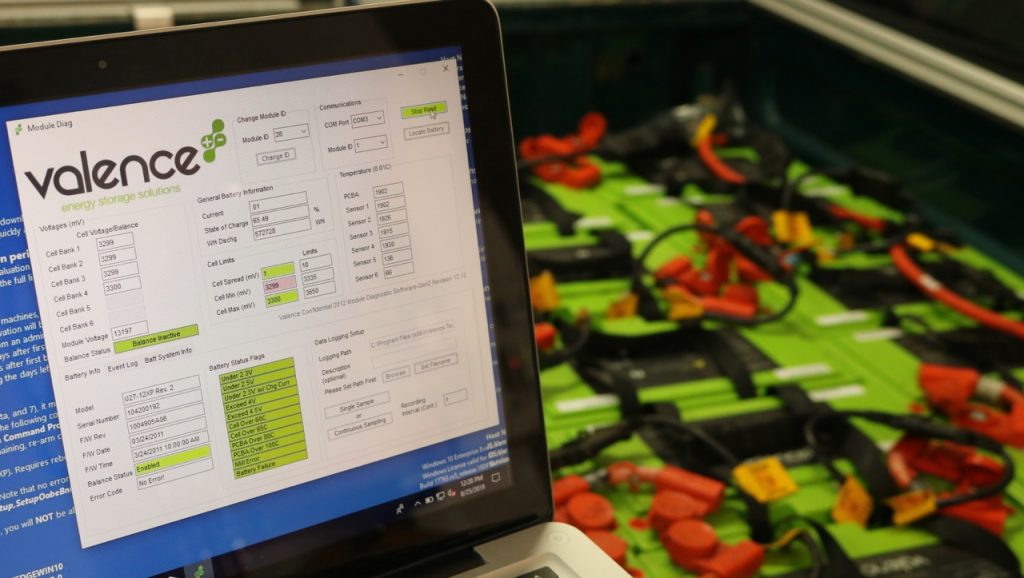

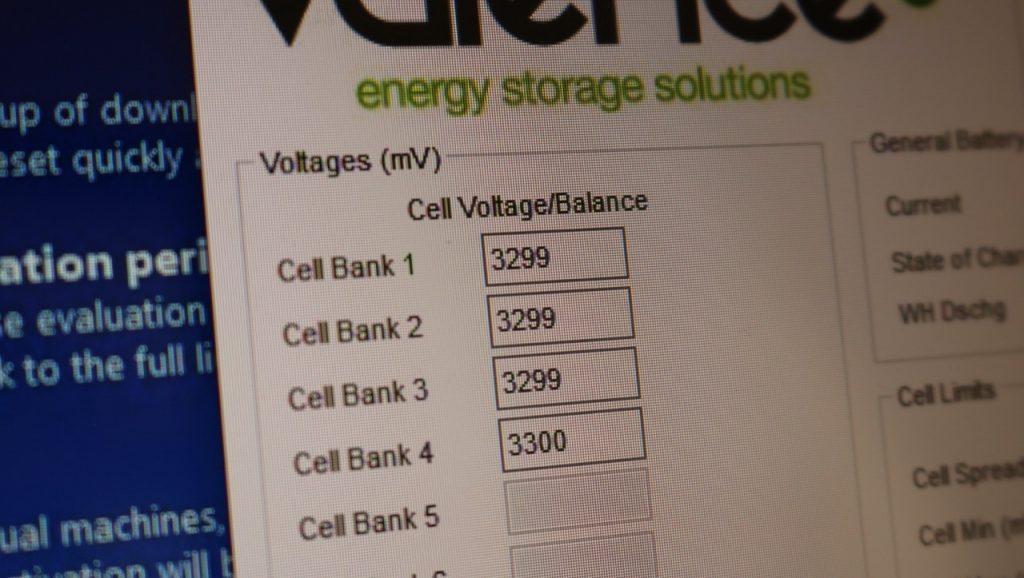

The Valence software lets the user view information about each individual battery, such as cell block voltages, state of charge, current in or out of the battery, and temperature. Users can also rename the IDs of each battery.

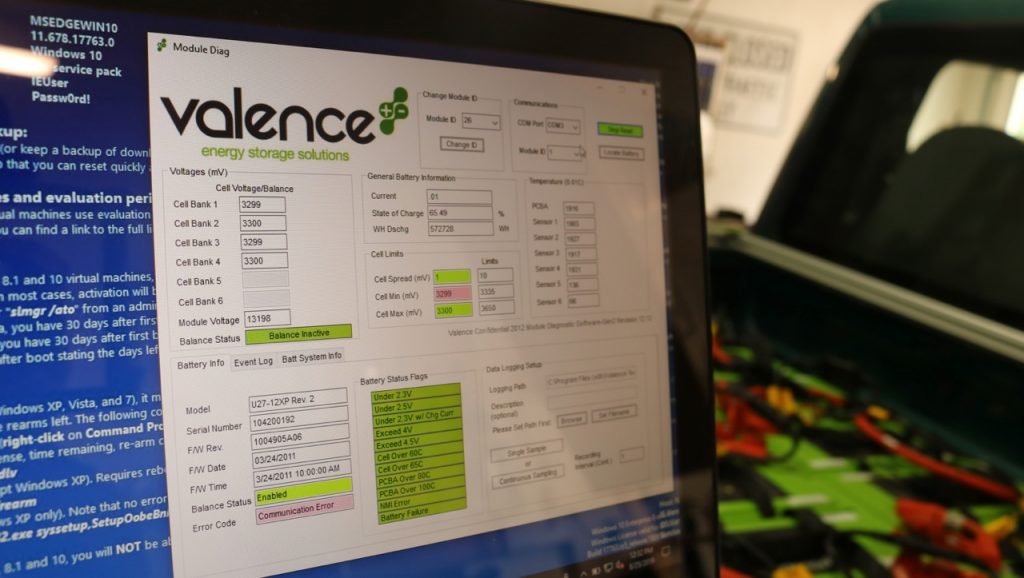

When I first connected, the software only connected to 24 instead of the full 26 batteries. The reason why is that two of the batteries had repeated ID numbers. I located a battery, renamed it from ID3 to ID25, and then got 25 of the 26 batteries to show up. I did the same thing for the last battery, (#4 to #26) but then the original #4 wouldn’t show up. Why? I have no idea. I did the exact same thing as the first battery with an ID change. Oh well, I’m sure I’ll figure it out…

While it’s very interesting to be able to get the data from the batteries, it’s NOT terribly useful while they are just sitting there. What WOULD be useful is seeing the detailed battery data while CHARGING and DISCHARGING. In other words, WHILE DRIVING! I have an extension cable that should reach from the back of the truck up to the passenger seat. I can put the laptop in the cab and connect to the batteries while driving. I’ll have to keep my eyes on the road, so I really won’t be able to watch the battery data as I do it. Fortunately, the software also includes a logging feature. I should be able to log the data as I go. I’ll just want to shoot some video so I can sync the data to what’s going on in the real world – accelerating, braking, going up or down that really big hill.

That’s it for now. I’ll need to play with the software a little more and get set up for doing a test drive while logging data.

Until next time, stay charged up!
-Ben
