Yes we CAN! CANBUS communications

by Ben N on February 21, 2015

Yes we CAN! Not just a presidential election slogan, it’s an enthusiastic exclamation of being able to communicate with the Vectrix electric motorcycle to a laptop using the CAN-BUS system.

I finally got the two to talk. All it took was buying the correct (over-priced in my opinion…) adapter and correct drivers.

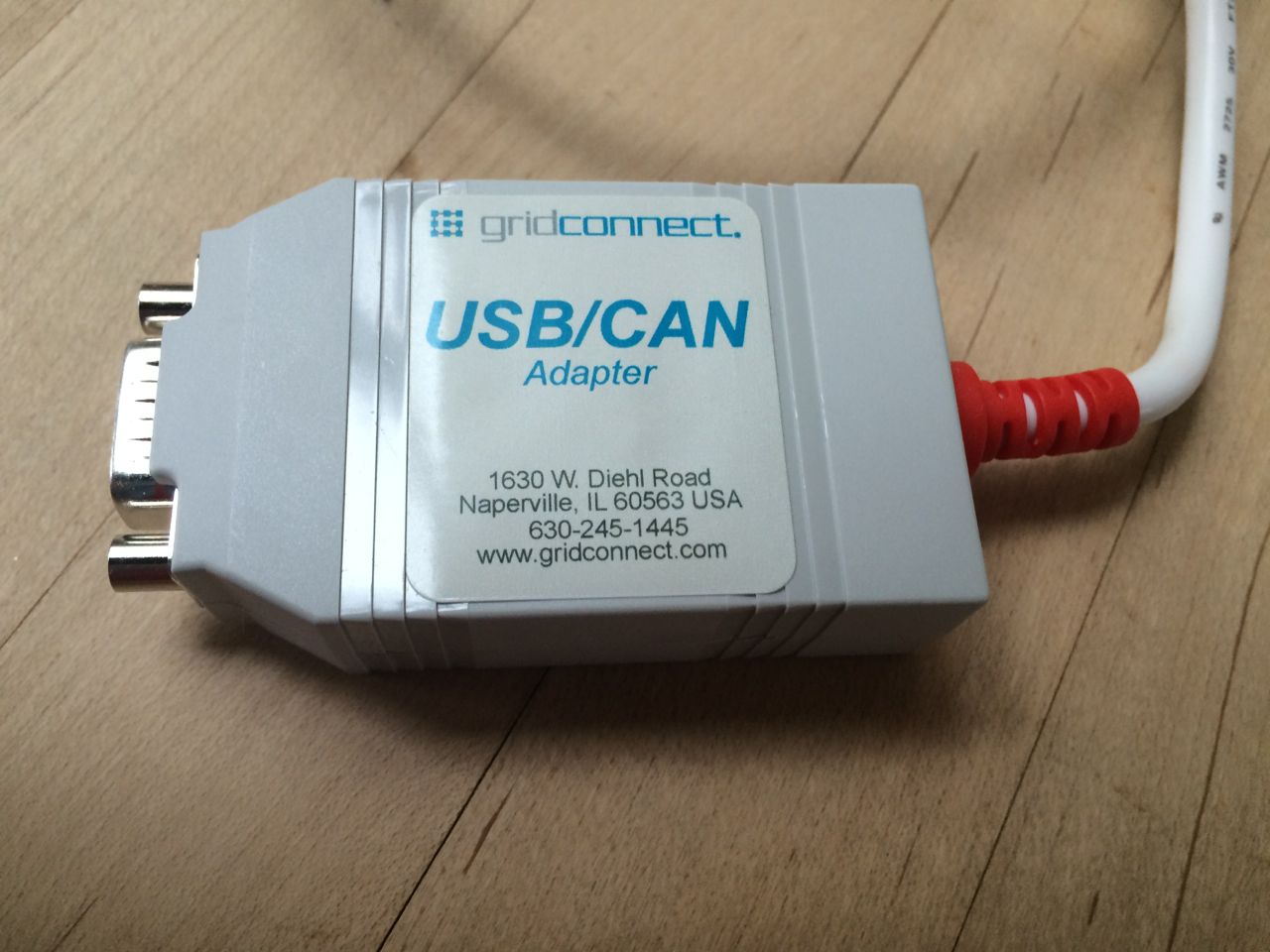

I purchased a Grid Connect USB-CAN adapter¬†¬†and cable to go with it. Once I had the software loaded on my laptop, I headed over to where I’m working on the Vectrix and set up the computer. Of course I still couldn’t connect to the Vectrix right away, so I visit the V is for Voltage forum once again to figure out what the trick was. User “Kocho” had posted a link to the correct driver for the adapter. Once I downloaded and installed it, the adapter worked!

I’m now able to talk to the Vectrix, although frankly, I’m not sure all of what I’m looking at. In the Scooter Diagnostic software, I could see the pack voltage and some other information, but nothing that struck me as instantly useful. For example, I’ve heard that as the original cells go bad, they tend to heat when charging, but in the temperatures listed I didn’t see any single number that was significantly higher than any other.

I was fun to see some of the other info listed, and the charting feature looks pretty useful as well. Also, does anyone know what “VPE” means in the upper right corner of the Summary screen? I have no idea.

Stay charged up!

-Ben



IMG_2171 IMG_2180 IMG_2181 IMG_2183 IMG_2184 IMG_2185 IMG_2191 IMG_2192
